Ref. HER-15-2Street Workout Equipement
Plateau Step
(S) – Street Workout stations
Plateau Step (S) - Street Workout stations, outdoor cardio and leg-strengthening module with Herkules Fitness professional sturdiness.
- Warranty
- Up to 10 years
- Certification
- EN16630:2015
- Number of users
- 1
Product view
- L 0.4 m
- P 0.4 m
- H 0.3 m
Overview
Plateau Step (S) - Street Workout stations
Plateau Step (S) is an outdoor street workout station designed for cardio-functional work and moderate amplitude strengthening of the lower limbs.
Its adapted height enables controlled climbs, dynamic step-ups and coordination exercises. The biomechanics are based on a unilateral push-up that stimulates the quadriceps, glutes and calves, while engaging the pelvic stabilizer muscles. This module promotes muscular endurance, balance and reactivity.
Ref. HER-15-2 · Street Workout Equipement
The figures
Technical specifications
Plateau Step (S)Technical sheet · dimensions in mm
- Length
- 400
- Width
- 400
- Height
- 250

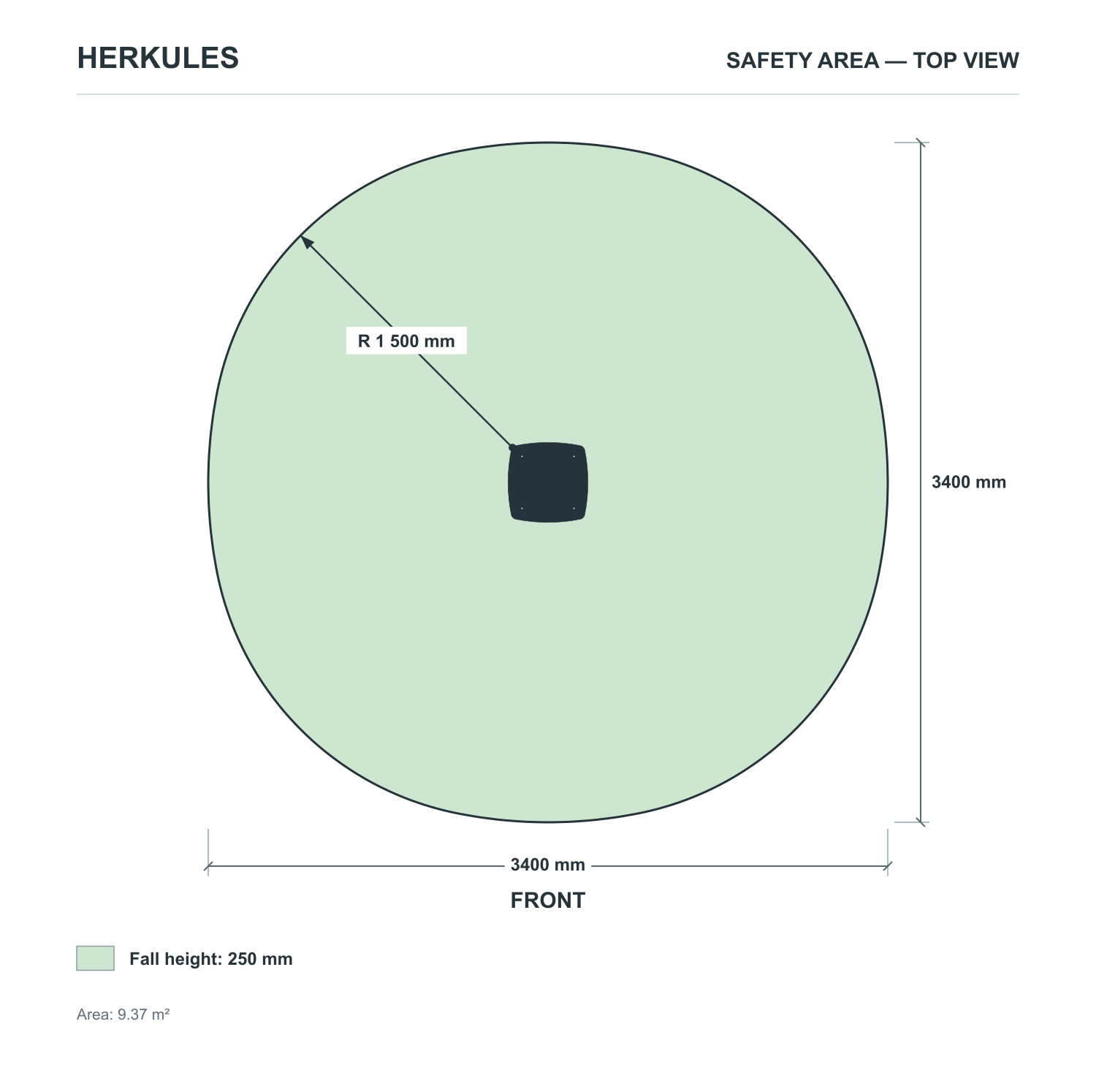

- Safety area
- 3,400 × 3,400 mm · 9.37 m²
- Material
- Galvanized powder-coated steel
- Certification
- EN16630:2015
- Warranty
- Up to 10 years
How to use it
Use
Plateau Step (S) is designed for teenagers and adults, from beginner to intermediate level.
It enables:
- Alternating rhythmic climbs
- Work on arm-leg coordination
- Low-impact cardio exercises
It is advisable to place the foot entirely on the platform and control the descent. Stability always takes precedence over speed.
What it trains
Function
- Targeted strengthening oflegs and buttocks
- Improvedcardiovascular endurance
- Unilateral balance work
- Coordination development
- An accessible module for dynamic outdoor training
What the standard requires
Safety & use
Safety & use
- Free fall height
- 250 mm
- Minimum user height
- 140 cm
- Maximum user weight
- 150 kg
- Number of users
- 1
Permitted surfacing
Putting it in place
Installation
- Safety areathe surface given in the table, clear all around.
- Concrete basepoured to the stated volume and depth, then cured.
- Fixingthe unit is bolted onto the cured base.
- Handoverplumb, tightness and no play before service.
- Upkeepregular visual check and periodic retightening (EN 16630).
Installation
- Concrete volume
- 0.15 m³
- Anchoring depth
- 600 mm
- Fixing
- Bolted
- Assembly
- Pre-assembled
Built to last outdoors
Design & materials
- Galvanized steel structurefor intensive outdoor use
- Reinforced anti-corrosion treatmentagainst UV and weathering
- Sturdy platformdesigned for repeated support
- Stable surface with safety finish
- Sustainable equipment for a collective environment
For whom, where
Recommended Public & Environment
- Urban parks and street workout areas
- Local authorities
- Schools
- Self-access fitness areas
A compact solution to complete an outdoor training area.
What sets it apart
Built to last outdoors
In brief
Why choose Plateau Step (S)?
The Step Plateau (S) - Street Workout Stations adds a cardio and coordination dimension to a street workout area. Its moderate height makes it accessible to a wide audience, while providing an effective workout for the lower limbs. Designed by Herkules Fitness, this module guarantees robustness, safety and durability for local authorities.
Downloads
Online fitness park configurator
The only manufacturer in France to offer an online configurator for outdoor fitness equipment. Select your equipment, visualize your project and receive a quote.
- 1 Choose your equipment
- 2 Visualize your layout
- 3 Check compliance
- 4 Receive your project
🛠 Launch configurator Free - No obligation - Immediate results
You may wonder
Frequently asked questions : Plateau Step (S)
Is the Plateau Step (S) - Street Workout stations suitable for beginners?
Yes, the Plateau Step (S) is suitable for beginners thanks to its moderate height and the possibility of adapting the pace of execution. It allows safe progression to more dynamic exercises.
Can it be used for outdoor cardio work?
Absolutely. Repeated climbs and rhythmic sequences stimulate the cardiovascular system while strengthening the legs, providing a complete, low-impact workout.
What's the point of working unilaterally on this module?
Unilateral work improves balance, corrects muscular asymmetries and strengthens the pelvic stabilizers. It is an essential part of modern functional training.
Does it complement a Step Plio 4x?
Yes, this module is the perfect complement to a plyometric station, offering a more moderate and accessible intensity to help users progress.
Will the structure stand up to intensive daily use?
Yes, its sturdy galvanized steel design and anti-corrosion treatment ensure excellent resistance to repeated use and outdoor weather conditions.
What kind of maintenance do you need for your community?
Regular inspection of fixings and bearing surface is recommended. Annual preventive maintenance guarantees safety, compliance and longevity.
Does the Plateau Step (S) comply with European standards?
Yes, the Plateau Step (S) - Stations Street Workout Herkules Fitness complies with European standards for outdoor sports equipment, ensuring safe and reliable use.
